ZX Spectrum 128K Introduction: Resurrecting a Legend, One Byte at a Time

ZX Spectrum 128K Restoration Chronicles

At Speccy Shack, we believe every ZX Spectrum tells a story—etched not just in circuits, but in decades of gaming, coding, and creativity. Each unit we restore isn’t just a computer—it’s a living slice of 8-bit history, bearing the scars and quirks that whisper tales from the golden age of home computing.

In this first instalment of the ZX Spectrum 128K Restoration Chronicles, we take you on the journey of Unit 107-014425—a classic “Toastrack” Spectrum born in Spain in 1985 under the watchful eye of electronics firm Sagitron. Once a silent, dust-covered relic, this machine has been brought back to life through a meticulous restoration process that blends technical skill with a deep reverence for Sinclair’s legacy.

This chronicle is more than just a look behind the curtain. It serves as a technical dossier, a certificate of authenticity, and a tribute to the enduring charm of the Spectrum. Inside, you’ll find detailed test results, condition reports, repair techniques, and a bite-sized historical overview—all delivered with the care only genuine Speccy enthusiasts can provide.

Welcome to the ZX Spectrum 128K resurrection of 107-014425. Let’s fire it up.

Unit Identification

Model type: 128K
Motherboard issue number and revision: Version 6U

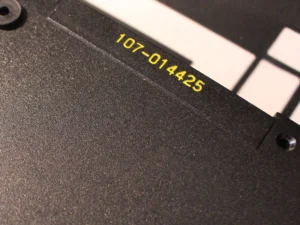

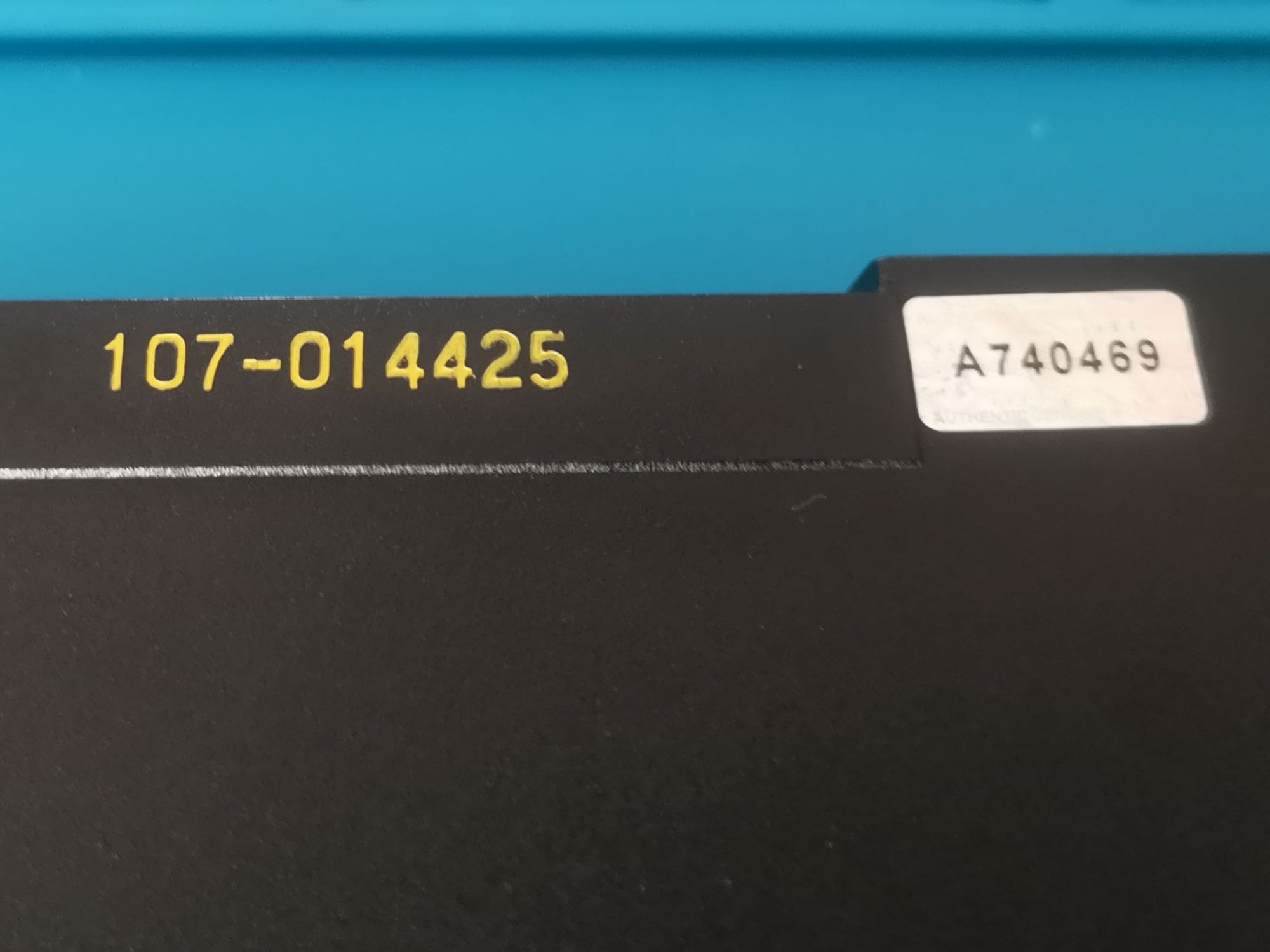

Serial number: 107-014425
Manufacturing era & factory of origin: Version 6U, dated 10 December 1985, was manufactured in Madrid, Spain, by the electronics company Sagitron.

Original Condition (As Received)

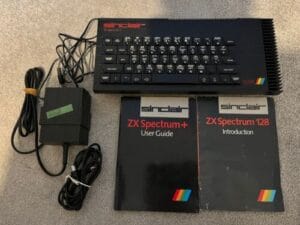

On July 21, 2024, I picked up a Sinclair ZX Spectrum 128k “Toastrack” via eBay—an unboxed unit that included the original Sinclair-branded power supply, TV lead, and user manuals.

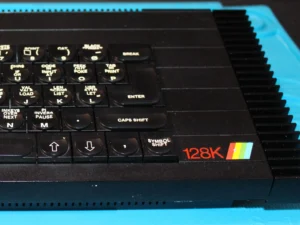

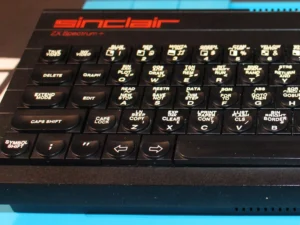

Cosmetically, the machine shows typical signs of wear for its age: surface scratches, case dings, and the usual plastic discolouration associated with 1980s electronics. The keyboard is functionally intact, but the keycaps are noticeably dirty and will need a thorough clean.

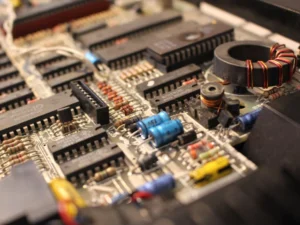

Internally, the unit appears complete, but there are visible signs of corrosion on the motherboard—particularly around the power input area. This suggests potential moisture exposure in its past, which could compromise long-term reliability if not addressed.

Next steps will involve a full disassembly, careful cleaning of the PCB and all contacts, and inspection of passive and active components for damage or degradation. The PSU also needs attention—it’s missing a mains plug and will require voltage and load testing to ensure stable output before connecting it to the Spectrum to prevent further risk of damage.

This Toastrack has potential, but it’s going to need some proper TLC. More updates soon as the restoration begins.

Case: Minor scuffing on the ZX Spectrum rainbow logo, missing rubber feet.
Keyboard Membrane: Functional (but needs full testing and good clean)
PCB: Visibly dusty, some oxidized solder joints
Power Circuitry: NEC UA 7805 CSP 8503 voltage regulator, functional
Connectors: Edge connector oxidized
ROM: NEC ROM, functional
ULA: Ferranti 7K010E5 8540, Functional

Refurbishment Process

There’s something deeply satisfying about the hum of a CRT, the clack of rubber keys (or in this case, proper ones), and that unmistakable loading screech. At Speccy Shack, we’ve refurbished many ZX Spectrums, but few machines excite us like the Sinclair ZX Spectrum 128K “Toastrack”. This model, nicknamed for its distinctive heatsink, is a milestone in Sinclair engineering — the last truly Sinclair-designed Spectrum before Amstrad took over. Here’s how we brought one back from the brink. The refurbishment process involves several steps to ensure that the unit is functional, aesthetically pleasing, and ready for another generation of users. Below are the key stages of the refurbishment process:

A. Cleaning & Cosmetics

Full disassembly and isopropyl alcohol cleaning
Case cleaning using Fairy Liquid and polished using Renaissance Micro-crystalline Wax
Replacement of keyboard membrane with a brand-new high-quality part

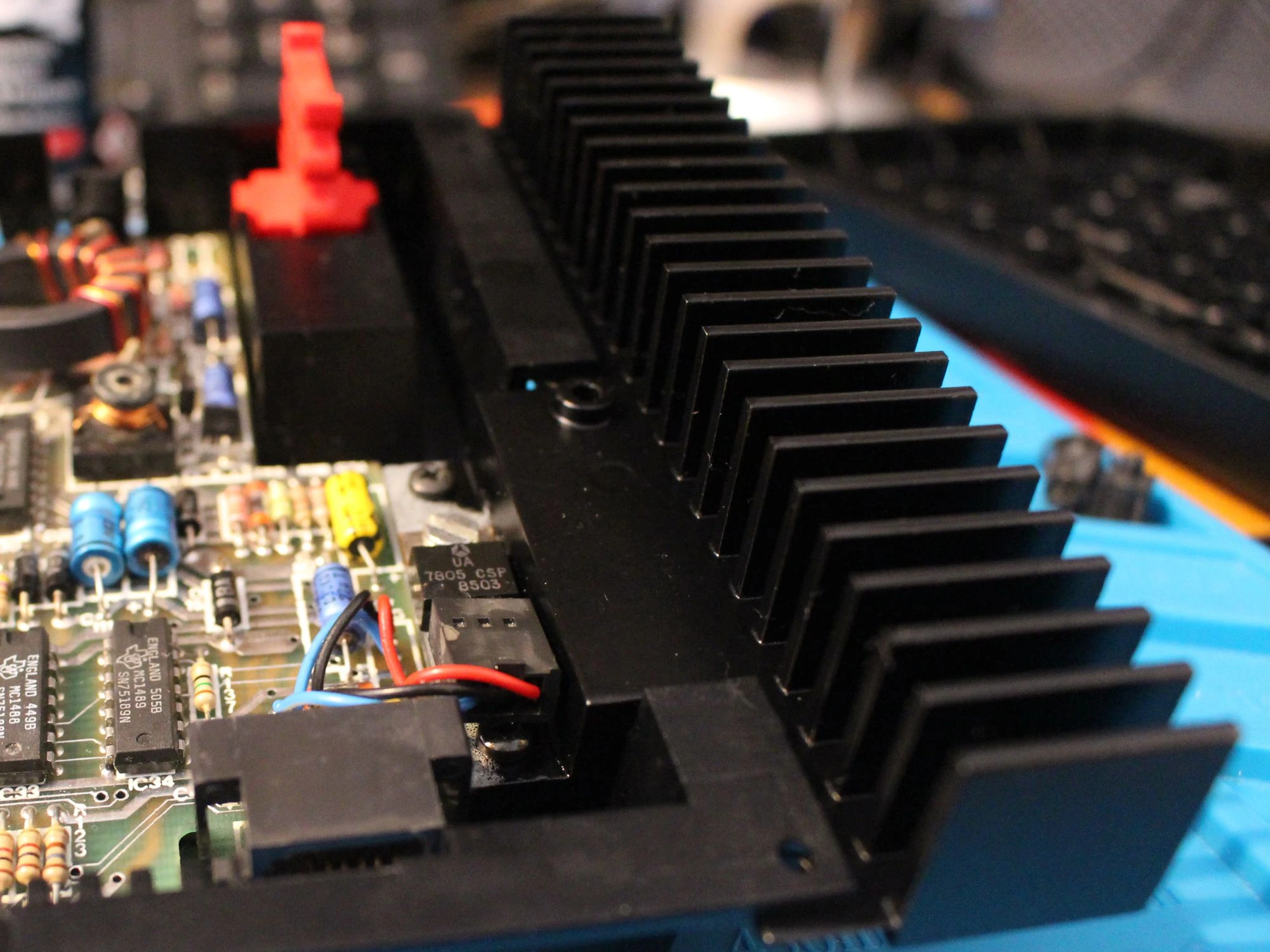

Heatsink cleaned with isopropyl and polished for a mild shine. Looks industrial and mean — the Toastrack lives up to its nickname.
Cleaning dirty logo and rainbow badge.

B. Electrical Restoration

Step 1: Power Supply Check — A Matter of Life or Death

We never plug an old Speccy into the wall without testing voltages first. The original PSU delivers +9V DC, but it’s unregulated — the internal 7805 linear regulator drops this to +5V for the logic board. Over time, these regulators can fail spectacularly.

We replaced the original PSU with a modern regulated supply to avoid frying any components during testing. Once inside, we verified:

+5V rail: stable at 4.98V
+12V and -5V: crucial for the audio and RAM ICs — both present, but a bit low

Solution: Capacitor replacement.

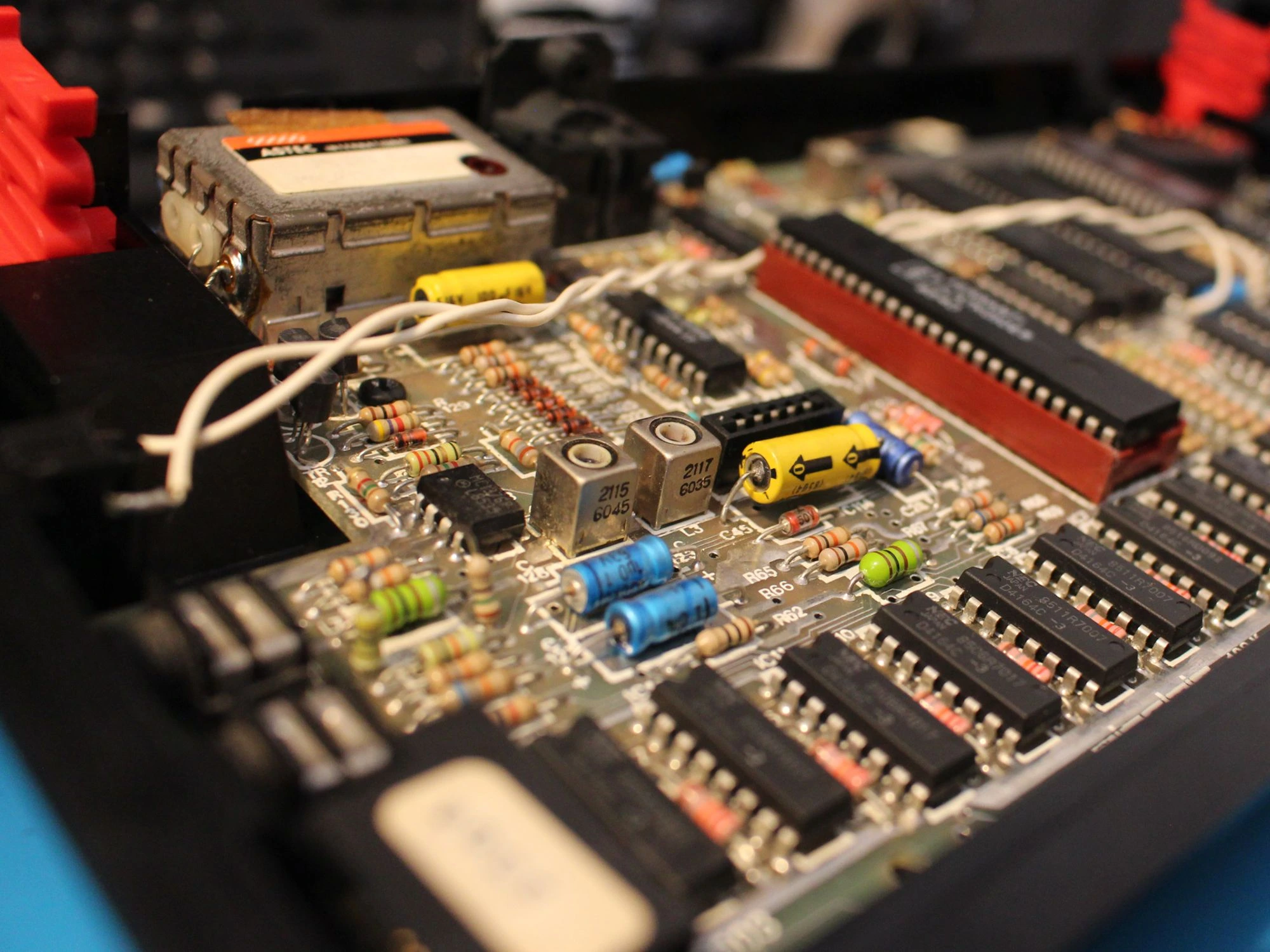

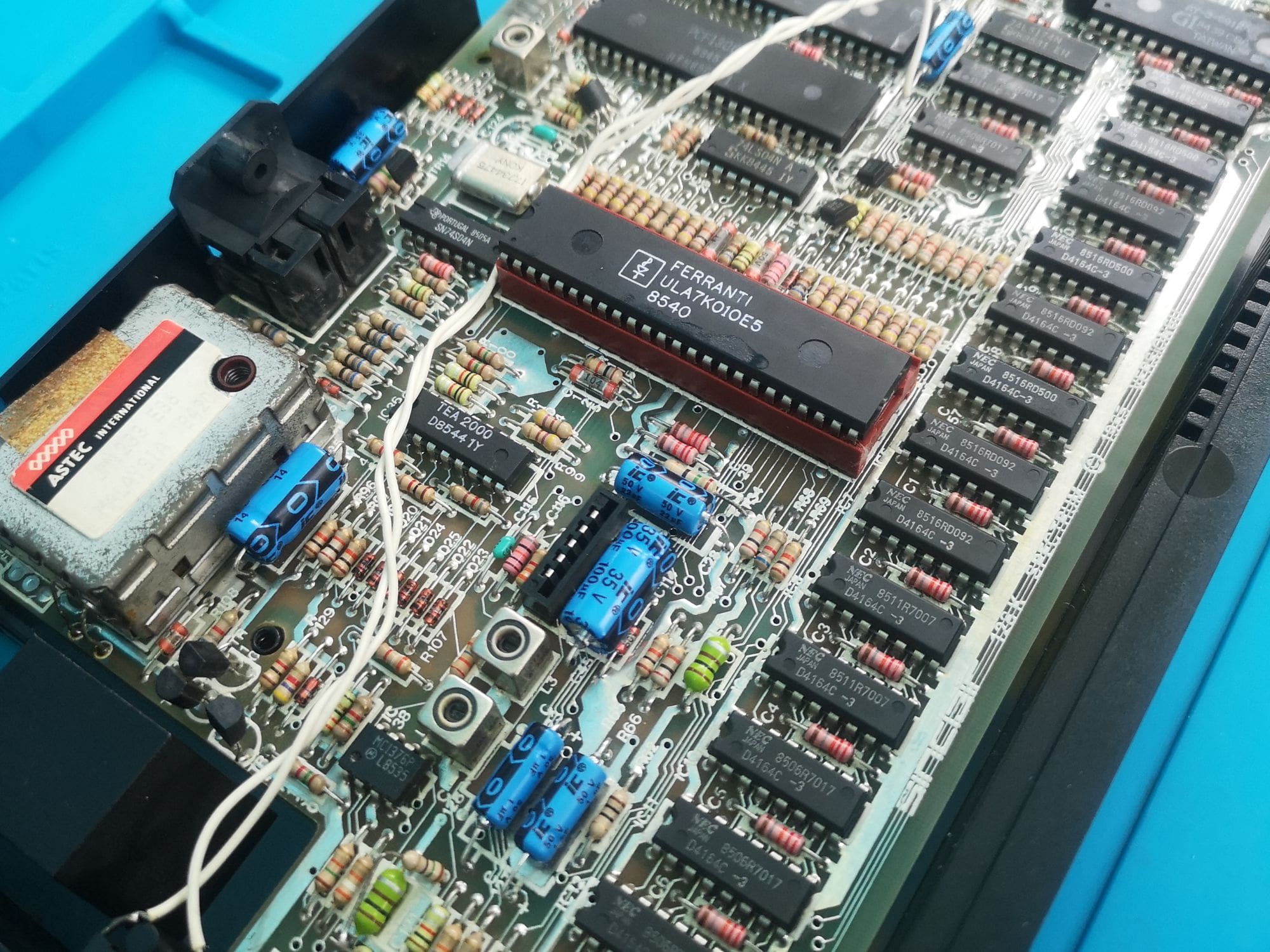

Step 2: Recapping the Board — A Time-Honoured Ritual

Our Toastrack was rocking an Issue 6U board, and after 35+ years, those electrolytic caps were dried out. We opted for a full recap using high-quality, axial type capacitors replacements (Supplied by Phil at Retroleum.co.uk).

Key Axial capacitors replaced are all blue in colour:

1uF – C27,C123,C127
4.7uf – C74
22uF – C28,C34,C50,C80
47uF – C111,C112,C131
100uF – C25,C44,C45 mnbv

Immediately, we saw improved voltage stability and reduced ripple. One small step for caps, one giant leap for reliability.

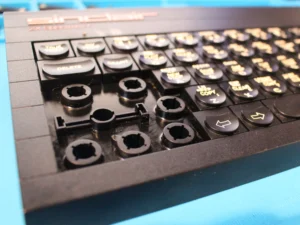

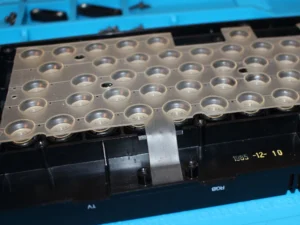

Step 3: The Keyboard — Membrane Matters

The keyboard on the 128K is an improvement over the rubber-keyed 48K model, but it still uses a delicate membrane — and ours had disintegrated like old bread.

We installed a new replacement membrane (provided by our preferred UK retro parts supplier, Darren Morris at SintechUK Limited) and checked for continuity across all rows and columns.

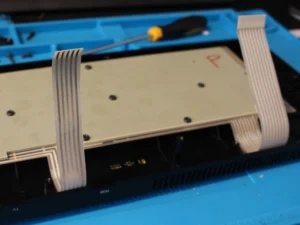

To access the keyboard membrane, you must disassemble the computer. The ZX Spectrum 128k+ is relatively straightforward to take apart, featuring eight screws on the bottom of the case and two connectors for the keyboard membrane linked to the mainboard.

Perfect. We also cleaned the key plungers and stabilisers, lubricating where needed for a smoother type.

Step 4: RGB Scart TV Lead — Say Goodbye to RF Snowstorms

At Speccy Shack, all our refurbished Sinclair ZX Spectrum+ 128K “Toastrack” machines come supplied with an official RGB SCART TV lead from Retro-Computer-Shack. This high-grade cable is specifically designed to deliver crisp, vibrant visuals with proper sync and voltage levels, making it the ideal companion for modern TVs and upscalers like the OSSC or RetroTINK. For retro gamers, this means a significantly sharper image compared to the original RF output, with more stable colours and reduced interference.

Step 5: RAM and Logic Check — Testing the Brains

The 128K Toastrack has two banks of RAM: 16K of lower RAM and 128K of upper RAM (with bank switching). We ran a full RAM test using a diagnostic ROM via the edge connector.

We reseated the Z80 CPU and checked the AY-3-8912 sound chip (a win for SID fans — the AY still rocks).

Enhancements & Modifications

Here are the exciting upgrades and adjustments that have been made to this ZX Spectrum! Each enhancement is completely reversible, ensuring that the unique charm of the Spectrum is maintained while elevating your experience.

Enhancement	Description
NEW RGB SCART Supplied	Official RGB SCART TV lead from Retro-Computer-Shack
Full Recapping	1uF – C27,C123,C127 4.7uf – C74 22uF – C28,C34,C50,C80 47uF – C111,C112,C131 100uF – C25,C44,C45 mnbv
New Keyboard Membrane	Sintech manufactured long-life part
Motherboard Cleaning	IPA, anti-static brushes, paper towels and cotton swabs

All modifications are fully reversible and designed to preserve the Spectrum’s character.

Final Test Bench Results

Power Stability Test: 5.02V constant under load – PASS
RAM test using diagnostic ROM – PASS
Full Keyboard Check: 40/40 keys registered – PASS
Video Output: Clean, stable picture – PASS
Loading Speed (Smartphone WAV): 100% success rate – PASS
External peripherals test (ZX-VGA-Joy, Kempston joystick) – PASS
Burn-in Test: Passed 8-hour continuous operation – PASS

Conclusion: Ready for the Future, Rooted in the Past

After a weekend of soldering, scrubbing, testing and tuning, our ZX Spectrum 128K Toastrack is back in action — and ready for another 40 years of Jet Set Willy and Manic Miner.

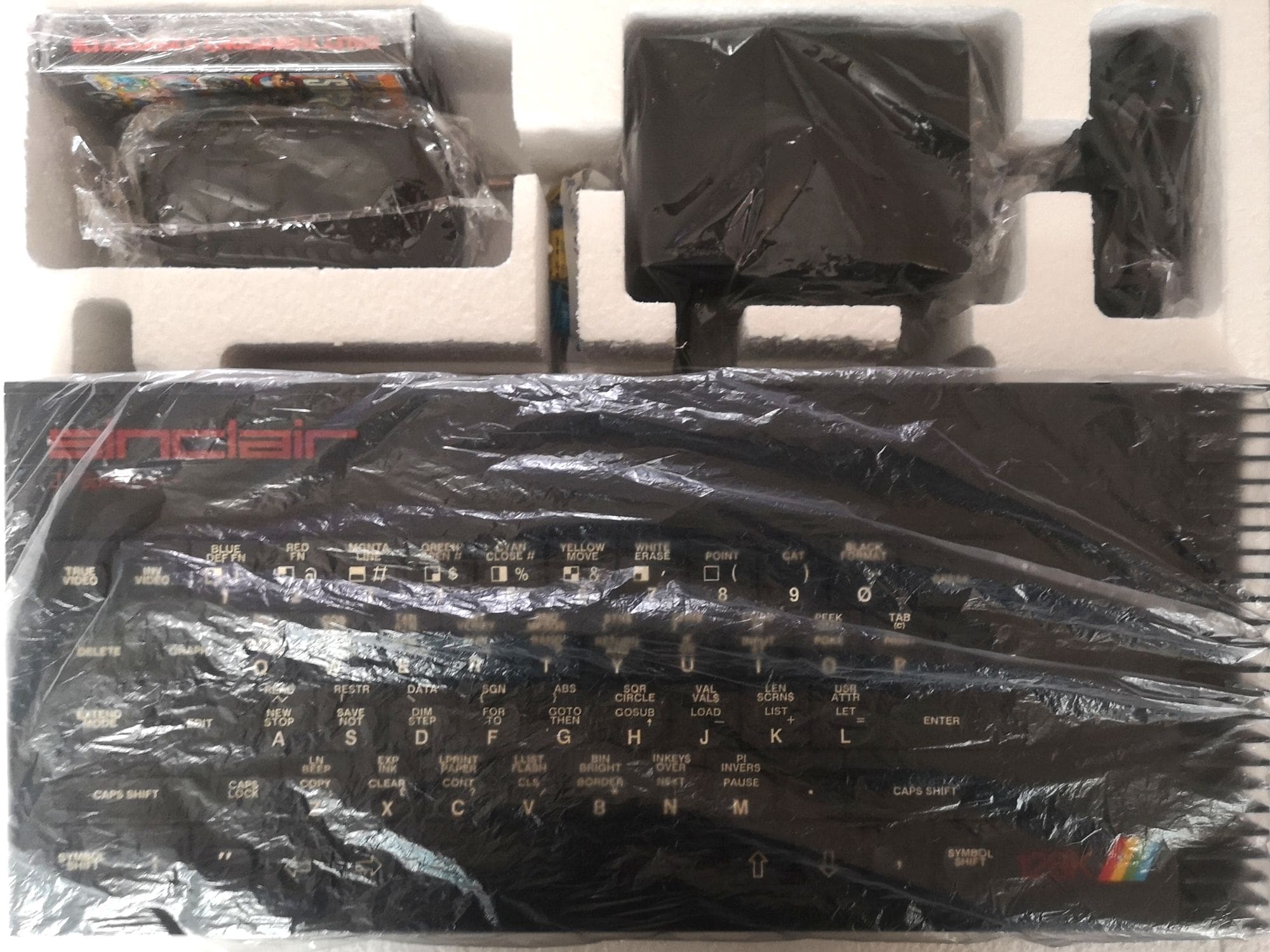

Boxed Sinclair ZX Spectrum 128k Toastrack

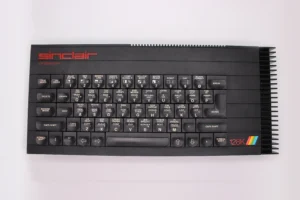

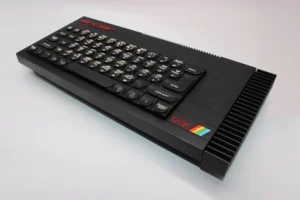

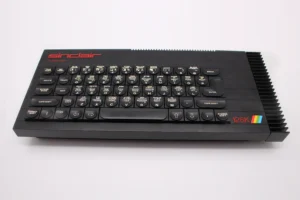

Sinclair ZX Spectrum 128K Toastrack Computer (Serial Number: 107-014425)

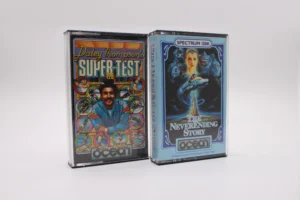

2 Games on cassette: i) The Never Ending Story – Spectrum 128K Edition ii) Daley Thompson Supertest – Spectrum 128K Edition

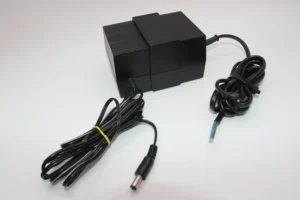

Original ZX Spectrum PSU
New Modern PSU
New Premium Retro Computer Shack RGB SCART TV lead design for ZX Spectrum 128K

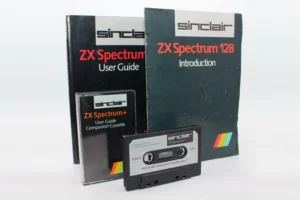

ZX Spectrum + User Guide
ZX Spectrum + User Guide Companion Cassette Tape
ZX Spectrum 128 Introduction

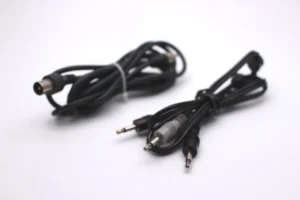

Ear/Mic cables
Original RF cable

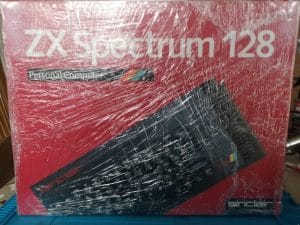

New Repro Box (cardboard box + polys) in excellent good condition

Fully tested and working with:

Board and case deep cleaned, including a complete keyboard strip and cleaning.
Each key has been hand-polished.
New keyboard membrane
Fully Recapped

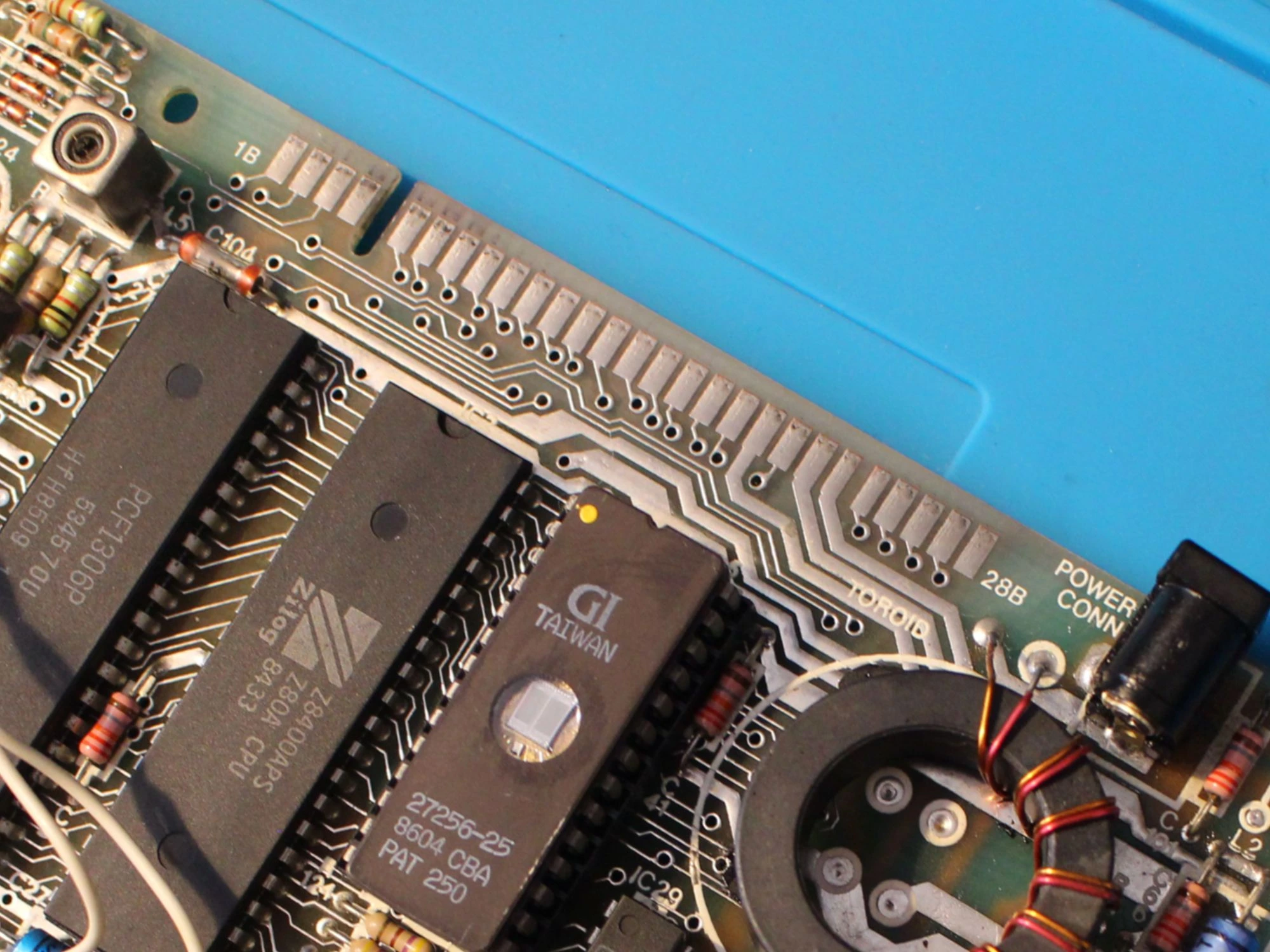

Edge connector cleaned
All sockets re-tightened

This is a rare gem to find fully complete, and it’s in fantastic shape— Perfect for collectors looking to enhance their collection!

Accessories & Add-ons

This refurbished ZX Spectrum computer can be enhanced with exciting optional extras to elevate your retro gaming experience:

These peripherals have been tested with this exact unit.

A Bit of History

Born on 10 December 1985 in Madrid, Spain, the Sinclair ZX Spectrum 128K Toastrack (Serial number: 107-014425) Version 6U holds a special place in computing history. Manufactured under license by the Spanish electronics company Sagitron, this version marked the next evolutionary step for the Spectrum line, boasting double the RAM of its predecessors, improved audio with the AY-3-8912 sound chip, and a more robust heat sink that earned it the iconic “Toastrack” nickname. Uniquely tailored for the Spanish market, the 6U board revision is a testament to the Spectrum’s international reach and enduring legacy.

Now rescued and restored by Speccy Shack, this classic machine has been meticulously refurbished to ensure it performs just as it did during the golden era of 8-bit computing. Every unit undergoes a thorough inspection, professional restoration, and modern output enhancements, all while preserving its vintage charm. For collectors and retro enthusiasts alike, this is more than just a nostalgic piece of hardware—it’s a living part of computing history, brought back to life with care and respect for its roots.

You are now a part of this machine’s journey—its guardian for the next chapter in its story.

Warranty & Support

All refurbished ZX Spectrums come with a 12-month warranty on parts and labour. Should any issues arise, contact us via:

support@speccyshack.com
www.speccyshack.com

Notes from the Technician

“It was a joy to bring this Spectrum back to life! The original PCB was in fantastic shape, and with its enhancements, it’s performing better than ever. I’ve fired up Jet Set Willy and JetPac numerous times, and it runs flawlessly each time. Relish this incredible gem from the history of computing!”

— Nick Banduch

Caring for the Restored ZX Spectrum

Preserve, Protect, and Play for Years to Come

This ZX Spectrum has been meticulously refurbished by Speccy Shack to provide you with the pleasure of 8-bit computing at its best. To maintain its excellent condition and guarantee its longevity, here are some crucial tips for care, handling, and upkeep.

1. Environment Matters

Keep your ZX Spectrum in a stable, indoor environment:

Temperature: Avoid exposure to extreme heat or cold.
Humidity: Store in a dry place to prevent moisture damage to internal components.
Sunlight: Keep out of direct sunlight to prevent fading or discoloration of the plastic casing.

2. Safe Power Use

Your unit may include a modern power supply or original PSU:

Use the supplied PSU only. Using an incorrect power source can damage the system.
If you ever replace the PSU, ensure it provides the correct voltage (usually 9V DC center-negative) and amperage.
Avoid plugging/unplugging peripherals while powered on.

3. Cleaning the Exterior

Use a soft, dry microfiber cloth for regular dusting.
For stubborn marks, lightly dampen the cloth with water—never spray directly on the unit.
Avoid alcohol or solvent-based cleaners, which can degrade plastics or labels.

4. Caring for the Keyboard

Gently press keys—original rubber membranes are restored but still vintage.
If your Spectrum has a new membrane, it will feel more responsive—treat it kindly to ensure longevity.
Avoid pressing multiple keys hard or rapidly, especially if the keyboard includes older components.

5. Loading & Saving Programs

Use compatible modern devices like DivMMC, SD-card loaders, or tape emulators for convenience.
If using original cassettes:
- Use a well-maintained cassette player.
- Keep audio levels balanced to avoid loading errors.
- Avoid prolonged use of aged cassettes—digitize them if possible!

6. Internal Upgrades & Mods

If you ever plan to upgrade or open your Spectrum:

Contact Speccy Shack first or follow experienced community guides.
Use anti-static precautions—vintage chips can be sensitive.
Never force components; the plastic casings and connectors can be brittle.

7. Periodic Checks

Visually inspect the power supply cable for wear.
Keep the unit dust-free to avoid thermal build-up inside.
If anything seems unusual—like screen flicker, random resets, or unusual sounds—unplug and consult Speccy Shack before further use.

8. Speccy Shack Support & Community

You’re never on your own—whether you’re a new enthusiast or a seasoned retro fan:

Visit www.speccyshack.com for updates, guides, and accessories.

Join our Speccy Shack Retro Club on Facebook to share experiences and troubleshoot with fellow Spectrum lovers.

Enjoy the Retro Journey

Your ZX Spectrum isn’t just a collector’s item—it’s a living piece of computing history. Treat it with care, and it will reward you with pixel-perfect memories, bleepy soundtracks, and that unmistakable rubber-keyed charm.

Keep it clean. Keep it cool. Keep on coding.
